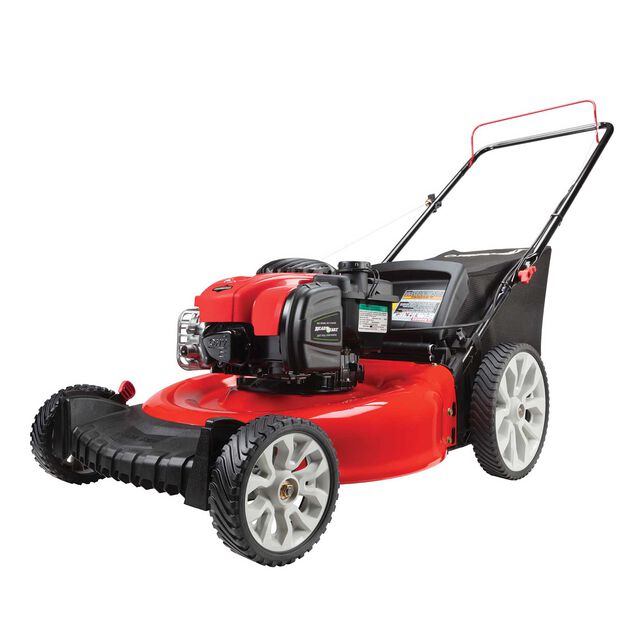

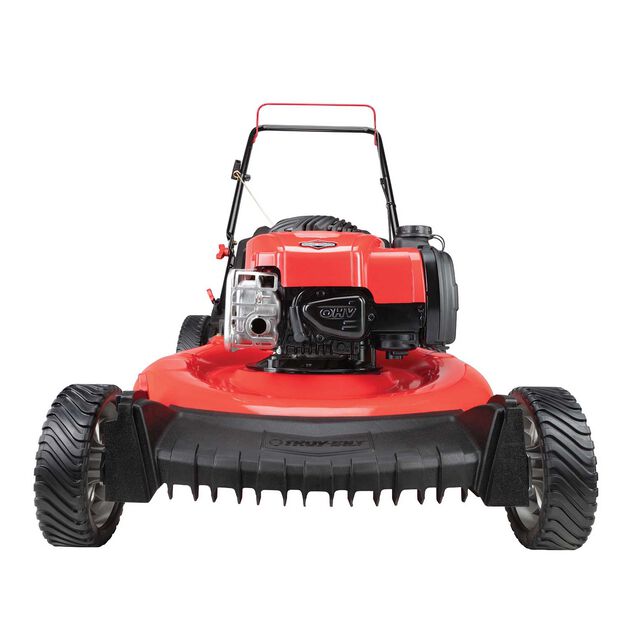

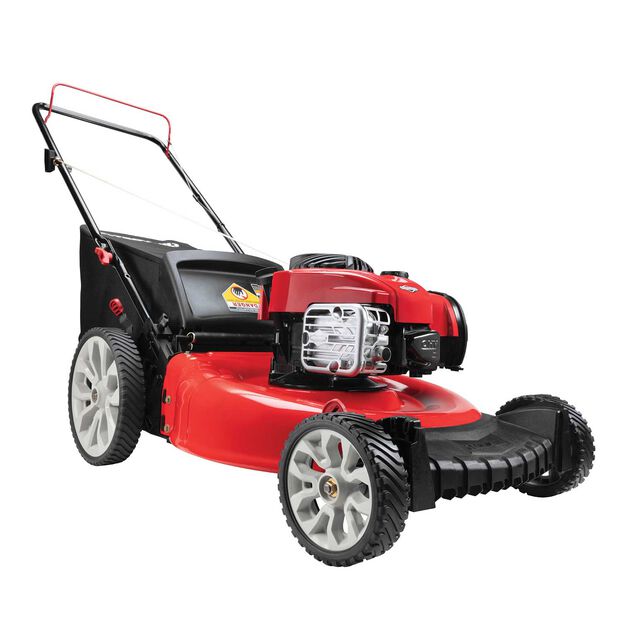

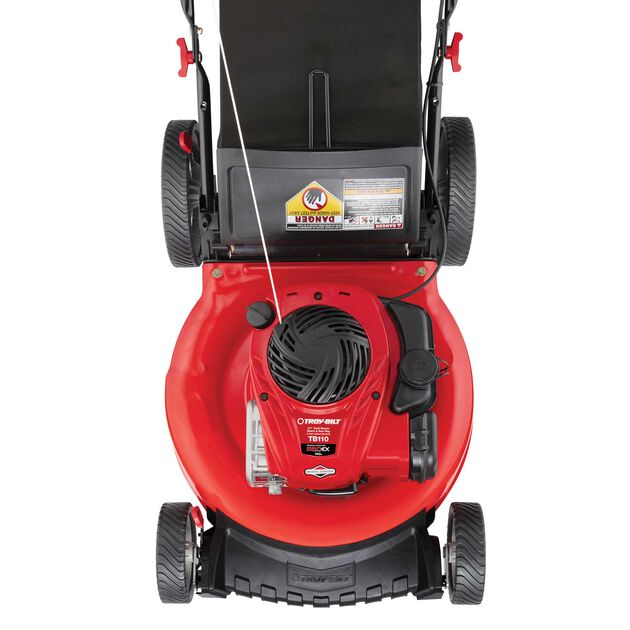

TB110 Push Lawn Mower
Model:
11A-B1BM723

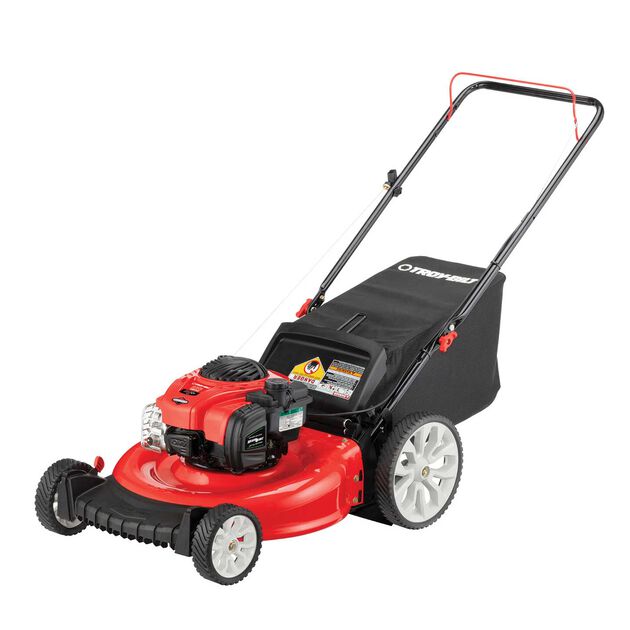

The Troy-Bilt® TB110 push mower lets you choose between mulching or rear bagging grass clippings and leaves when working in the yard. It's built with a rugged 21" steel deck and 11" rear wheels to help easily maneuver on hills and over rough spots. The 140cc Briggs & Stratton® engine is engineered for reliable power to get the job done and is equipped with ReadyStart™ technology for simple, no prime, no choke starting.
Documents and Guides
-
This item is currently not available
$369.00
Features
Features

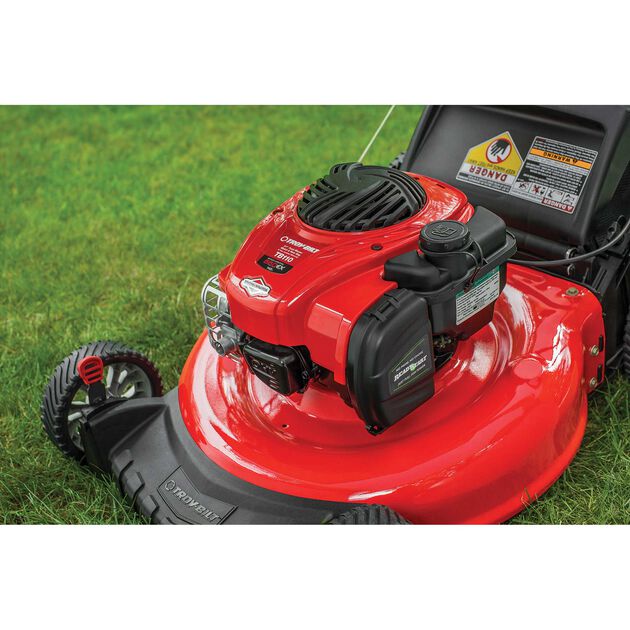

- 140cc Briggs & Stratton® ReadyStart™engine is designed for simple no prime, no choke starting.
- 11" high rear wheels are designed to provide traction and help make it easy to navigate uneven terrain.

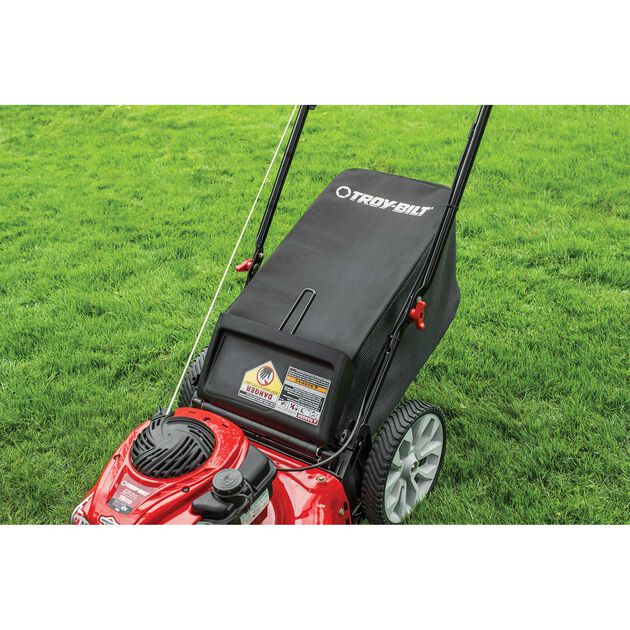

- 1.9 bushel rear bag collects grass clippings and leaves for easy clean up or composting.
- Included mulch kit helps maintain a healthy lawn.
Specification
Engine
- Engine Brand Briggs & Stratton®
- Engine Model 550ex
- Engine Model Number 09P702-0277
- Engine Displacement 140cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke ReadyStart
Drive System
- Drive System Push

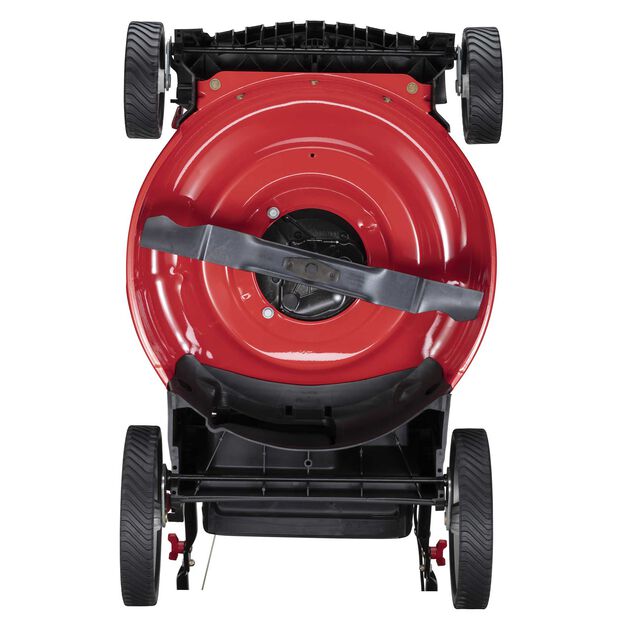

Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash No
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System N/A
- Mulch Plug Integrated
- Discharge Location None
Controls
- Handle Adjustable Loop
- Drive Controls N/A
Wheels
- Tread Pattern S-Wave
- Front Wheels 7 in
- Rear Wheels 11 in
- Bearing Type Poly Bushing
Additional Specifications
- Model Number 11A-B1BM723
Warranty
- Residential Warranty 2-year limited
- Commercial Warranty No
Grass Collector
- Grass Bag Capacity 1.9 Bushel
- Bagger Type Dust Blocking
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Operator Manuals
Model | Manual | Form Number | |
|---|---|---|---|
| 11AB1BM723 | MANL:OPER:BILING:11X:CONSOLIDA | ||
| MANL:OPER:BILING:11X:CONSOLIDA | 769-17232 | ||
| MANL:OPER:BILING:11X:GEN:DIGES | 769-22910A | ||
| MANL:OPER:BILING:11X:GEN:DIGES | 769-22910B | ||
| MANL:OPER:BILING:11X:GEN:DIGES | 769-25833A | ||
| MANL:OPER:FRENCH:11X:CONSOLIDA | 769-17232_FR | ||
| SHEET:SUP:11X:12XTROY:USCA | 769-26316 | ||
| SHEET:SUP:11X:12XTROY:USCA | 769-26679 | ||
| SHEET:SUP:BILING:11X:12XTROY | 769-23230 | ||
| SHEET:SUP:BILING:11X:TROY:XP | 769-17730 | ||
| SHEET:SUP:FRENCH:11X:12XTROY | 769-23230_FR | ||
| SHEET:SUP:FRENCH:11X:TROY:XP | 769-17730_FR | ||
| SHEET:SUP:Warranty_Addendum_In | 769-26830 |
