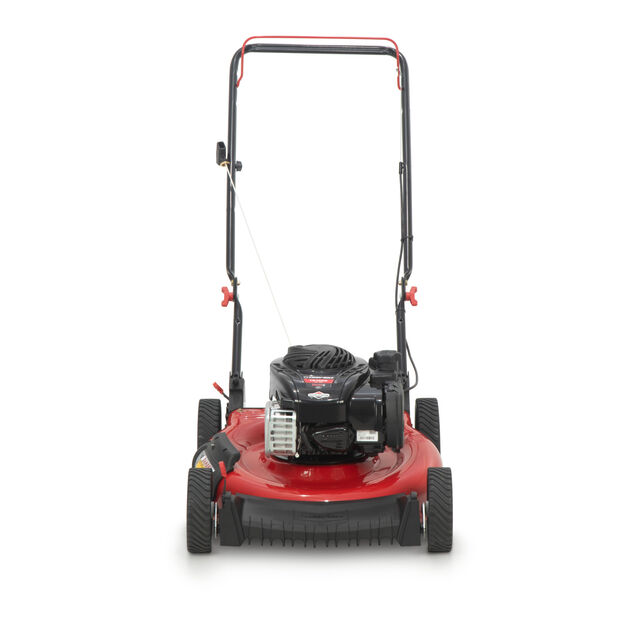

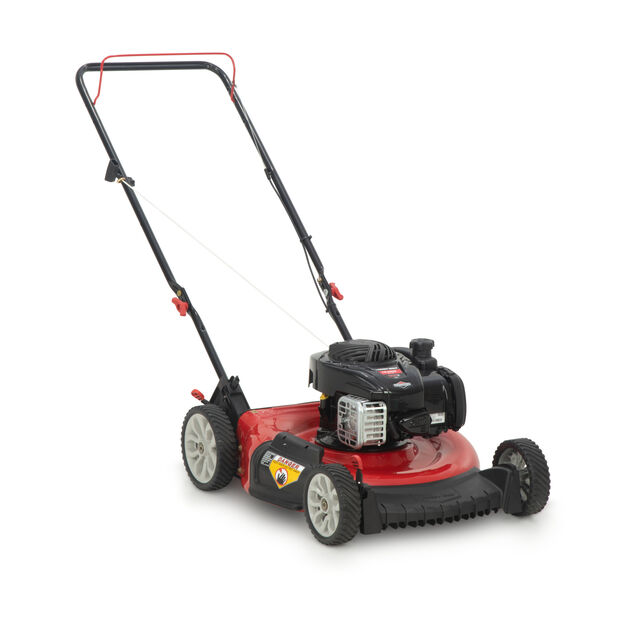

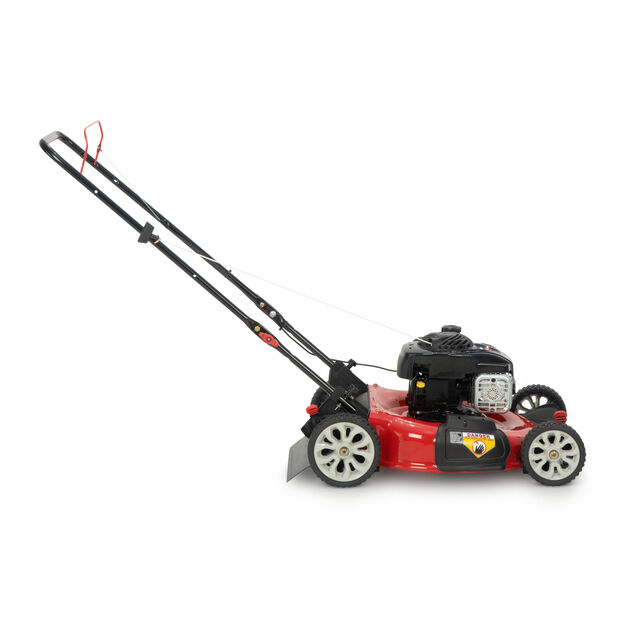

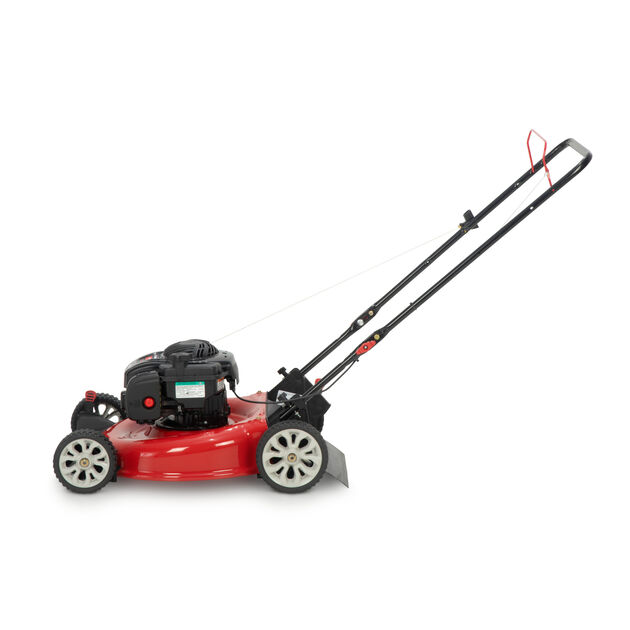

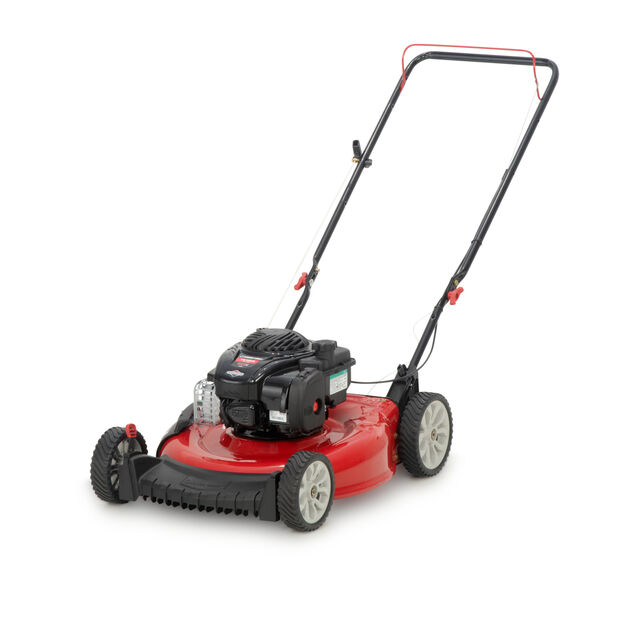

TB105B Push Lawn Mower
The Troy-Bilt TB105B is the walk-behind lawn mower you need to help make yard work easier. This walk behind lawn mower features a dependable 140cc Briggs & Stratton® engine that delivers reliable power to get the job done right and is equipped with Prime 'N Pull™ for easy starting. A 21" steel deck provides durability that's built to last with a mulch kit included. Count on Troy-Bilt to help make yard work easier.
Documents and Guides
- 140cc Briggs & Stratton engine with Prime N Pull™ starting system for reliable, easy starting
- Included mulch kit helps maintain a healthy lawn
- TriAction™ cutting system was engineered to deliver a clean, even cut every time. A rake guard stands grass upright for a clean cut, a higher performance blade creates lift for a finer cut and a symmetrical deck design improves airflow and works with the blade to cut clippings more times, producing a finer mulched cut
- 21" steel deck provides durability that’s built to last
- Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25" to 3.75 "
- Push Lawn Mower
- Engine Brand Briggs & Stratton®
- Engine Model 500e
- Engine Model Number 09P602-0139
- Engine Displacement 140cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke Primer
- Drive System Push
- Deck Cutting Width 21 in
- Deck Wash No
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
- Handle Adjustable Loop
- Drive Controls N/A
- Tread Pattern S-Wave
- Front Wheels 7 in
- Rear Wheels 8 in
- Bearing Type Poly Bushing
- Engine Starter Type Recoil
- Model Number 11A-A0BL766
- Warranty 2-year limited
- Commercial Warranty No
- Deck Cutting Width 21 in
- Grass Bag Capacity N/A
- Bagger Type N/A
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
